Selenia® Dimensions® Mammography System

    Overview

    Clinical Images

    Documents

    Training

    Better detection. Clinically superior. Low dose.**

    What if we could find breast cancers earlier? See lesions more clearly? Reduce the number of unnecessary biopsies? Questions like these inspired Hologic researchers and scientists to develop Hologic 3D.

    Mammography technology. With the introduction of Selenia Dimensions, we launched the first commercially available system that delivers on the extraordinary promise of breast tomosynthesis.

    Over half of the U.S. News and World Report top 20 cancer hospitals offer Hologic 3D Mammography technology. More than five million women to date in the United States have already been screened with this life changing technology, which is now available in 50 states and in over 50 countries.

    Selenia Dimensions system's Genius™ 3D Mammography™ exam: Simply a better mammogram.

    Hologic has always been at the forefront of breast cancer screening and offers the first breast tomosynthesis technology with proven superior clinical performance to 2D mammography1,4. The revolutionary Selenia Dimensions system, which has set the standard in mammography screening, provides:

    Exceptionally
sharp images

    Seamless transition
 between imaging modes

    Sophisticated user tools
that simplify operation

    Advanced
clinical applications

    The world's first and only tomosynthesis guided biopsy

    Ergonomic design for patient comfort and ease of operation

    And there is more good news:

    The Selenia Dimensions system's Genius 3D Mammography exam offers the only breast tomosynthesis technology with the following advantages over 2D mammography, proving that not all tomo is the same:

    • Proven to detect 20%-65% more invasive breast cancers compared to 2D alone, an average increase of 41%.1
    • Proven to reduce callbacks by up to 40% compared to 2D alone.2-3
    • FDA approved as superior for women with dense breasts compared to 2D alone.2,4

    Fast, low dose and clinically superior compared to 2D.

    3D Mammography exams powered by C View™ software.



    Hologic has further advanced breast cancer screening by producing 2D images from breast tomosynthesis data using C View software, resulting in a Low Dose Genius 3D Mammography exam with superior clinical performance compared with 2D alone.4

    This Low Dose Genius 3D Mammography exam is performed in a rapid 3.7 second scan time for greater patient comfort and low patient dose, due to the elimination of 2D X ray exposures. The synthetic 2D images and 3D slices are reviewed together to make clinical decisions or diagnoses part of the Genius 3D Mammography screening exam.

    Video Resources

    Packages & Options

    The Selenia Dimensions system is available in multiple packages and options to meet your facility's unique needs, all without compromising clinical performance:

      The evergreen 2D system that offers the benchmark Hologic customers expect, with essential ergonomics and functional workflow features at an attractive price. Plus, the Selenia Dimensions system 3000 package offers the agility to evolve with you.

      The 3D system that offers the benchmark Hologic customers expect, with essential ergonomics and functional workflow features, as well as the Genius 3D Mammography exam, at an attractive price.

      The 2D/3D™ system that redefines ergonomics, matched with the perfect balance of enhanced workflow features, taking your performance to the next level.

      The premium 2D/3D system that delivers on high performance through its outstanding, optimal ergonomics and elevated, intelligent workflow features that amplify your performance.

      Product Gallery

      Technician speaking with patient at mammography station
      Technician using medical equipment on white background.
      Medical equipment on white background
      Medical equipment on white background

      Features

      Streamlining workflow, the Selenia Dimensions system performs the imaging of tomorrow, today. All configurations offer the following features.

        • Images that can be instantly viewed on a 2MP or 3MP DICOM calibrated display, providing exceptionally fine detail
        • Allows prior breast imaging studies to be recalled, making it possible to view new and prior images side by side.
        • Retractable to help when positioning patients.
        • Stationary during 3D imaging, allowing patients to be positioned as they are for 2D imaging.
        • Conforms to natural contours of the breast, providing greater comfort to the patient and more even compression across the entire breast
        • All paddles used for 2D and 3D imaging.
        • Streamlined tube head and ample source to image distance (SID) of 70 cm, making positioning easier and providing more space for interventional procedures.
        • 2D mammography
        • Genius 3D Mammography exam
        • Low Dose Genius 3D Mammography exam
        • 3D Mammography only

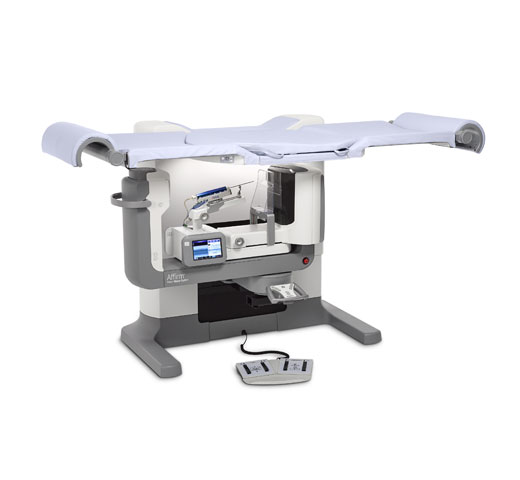

        • 2D or 3D biopsy with the Affirm® breast biopsy guidance system
        • I-View™ software for contrast enhanced 2D imaging

        Each system is capable of interventional procedures using the Affirm breast biopsy guidance system. The system offers both stereotactic and 3D biopsy procedure options.*

          *Additional purchase may be required.
          **Better detection and clinical superiority claims are in comparison to 2D mammography alone.
          The Genius™ 3D Mammography™ exam (a.k.a. Genius™ exam) is acquired on the Hologic® 3D Mammography™ system and consists of a 2D and 3D™ image set, where the 2D image can be either an acquired 2D image or a 2D image generated from the 3D™ image set. The Genius™ exam is only available on the Hologic® 3D Mammography™ System. Please consult your physician for a full list of benefits and risks associated with mammography
          Reference: 1. Results from Friedewald, SM, et al. Breast cancer screening using tomosynthesis in combination with digital mammography. JAMA 311.24 (2014): 2499-2507; a multi site (13), non randomized, historical control study of 454,000 screening mammograms investigating the initial impact the introduction of the Hologic Selenia® Dimensions® on screening outcomes. Individual results may vary. The study found an average 41% increase and that 1.2 (95% CI: 0.8-1.6) additional invasive breast cancers per 1,000 screening exams were found in women receiving combined 2D FFDM and 3D mammograms acquired with the Hologic 3D Mammography system versus women receiving 2D FFDM mammograms only. 2. Freidewald SM, Rafferty EA, Rose SL, Durand MA, Plecha DM, Greenberg JS, Hayes MK, Copit DS, Carlson KL, Cink TM, Carke LD, Greer LN, Miller DP, Conant EF, Breast Cancer Screening Using Tomosynthesis in Combination with Digital Mammography, JAMA June 25, 2014. 3. Bernardi D, Macaskill P, Pellegrini M, et al. Breast cancer screening with tomosynthesis (3D mammography) with acquired or synthetic 2D mammography compared with 2D mammography alone (STORM-2): a population based prospective study. Lancet Oncol. 2016 Aug;17(8):1105-13. 4. FDA submissions P080003, P080003/S001, P080003/S004, P080003/S005
